DBF-2019

TEAM

DIRECTORS

Markus Kucera
Technical Documentation

Miriam Scharf
Management

Mathias Krampl
Engineering

COMPETITION

This year’s competition will be hosted by Raytheon Missile Systems. The fly-off is scheduled for 11-14 April 2019 at the TIMPA facility in Tucson, Arizona. The objective for this year is to design a multi-purpose aircraft to support carrier operations. The aircraft must feature a remote transition from a stowed configuration of 3 feet maximum width to a flight configuration with a minimum wing span of 4 feet. Furthermore, short take-off capabilities and the abillity to carry payloads in the form of a rotating radome or multiple attack stores.

The Joanneum aeronautics DBF-19 team is looking forward to designing an aircraft capable of accomplishing all the requirements and to compete in the in the fly-off against the other teams.

Flight Missions

Like the last years, the competition will have three flight missions. The aircraft must transition to flight configuration form stowed configuration before each flight mission and take off from a 10 feet long ramp.

1st flight mission – Delivery mission:

The aircraft must demonstrate its flight capabilities without any payload

2nd flight mission – Reconnaissance mission:

The aircraft must be able to carry a rotating radome during the flight. The radome must have a minimum diameter of 12 inches and a thickness of 1 inch at the mounting point. The radome shall not rotate during take-off and landing.

3rd flight mission – Attack mission:

For the last mission the aircraft will be loaded with attack stores, which shall be dropped individually. The attack stores will be represented by large dart rockets with a length of 10 inches and a diameter of 3 inches. At least four darts have to be carried under the wing.

Ground Mission

There will also be a ground mission, where the different tasks of the flight missions must be demonstrated. The ground mission will be timed. The aircraft starts in the stowed configuration. During the mission the transition to flight configuration must be demonstrated. Then the radome must be mounted and the time will stop for the demonstration of the remote activation/deactivation. The time will then be restarted and the radome will be removed followed by the mounting of four attack stores. The time stops after completion. The ground mission finishes with a demonstration of the flight control and propulsion systems as well as individual release of the attack stores.

The full rules can be viewed at the homepage of the AIAA.

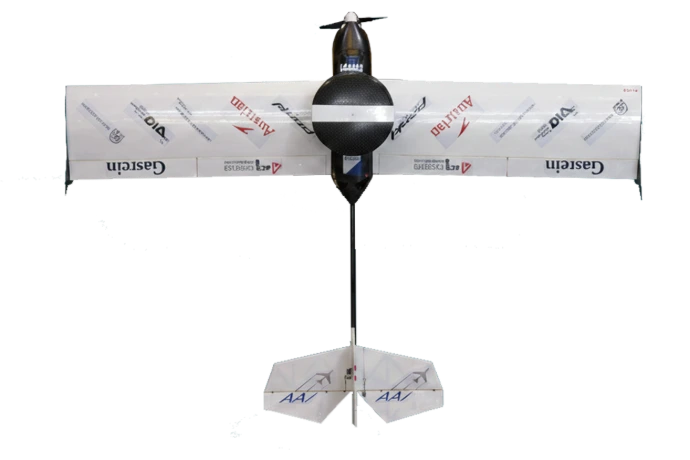

Aircraft

Other than in the last years, the design parameters like wingspan and weight of the aircraft do not impact the overall score. This gives the Joanneum Aeronautics DBF-19 team the possibility to come up with creative and inventive designs for their aircraft. However, the resulting design will be a compromise, which the team believes suits the task of fulfilling the contradictory requirements best.
